Capabilities
Built for the production floor.

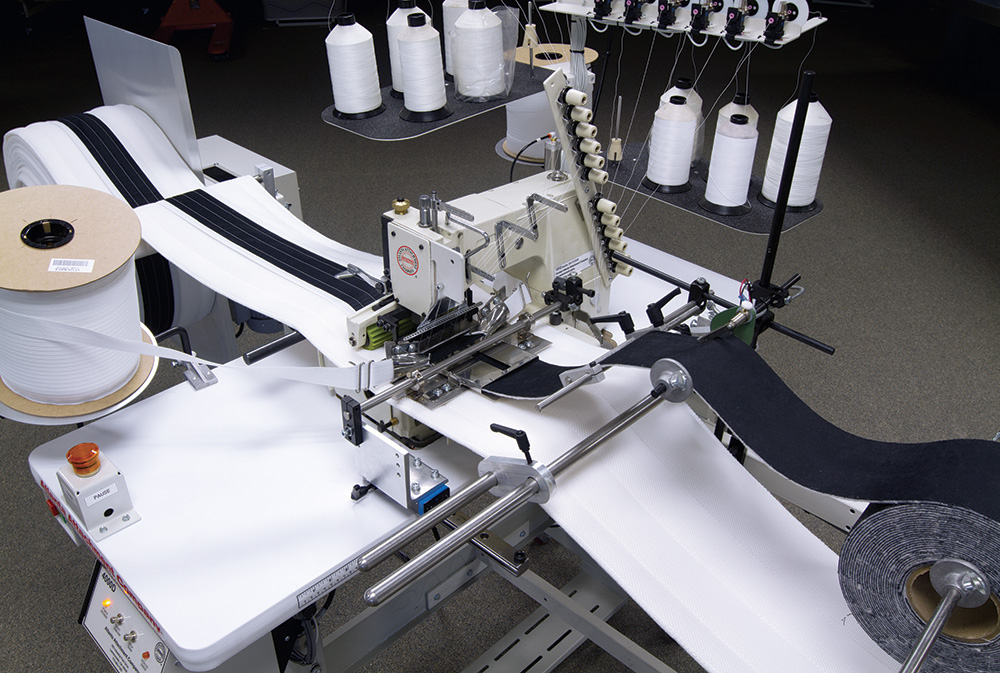

Every automatic decorative border workstation is engineered for uptime, serviceability, and integration with the rest of your line.
- Needle spacing: 25 needles 1/4” gauge to 6″
- Border width adjustable up to 18″
- Synchronized puller produces pucker-free seam
- Decorative trim width adjustable
- Auto stop for material depletion
- Thread break detectors
- Variable torque re-winder
Specifications & details
| Max sewing speed (rpm) | 2400 |
|---|---|
| Factory preset speed (rpm) | 2000 |
| Max stitch length (spi) | 6-7 |
| Max needle distance (inch) | 6 |
| Needle system | SN113 |
| Needle size | 18/100 |
| Weight of material | MEDIUM |
| Max presser footlift (inch) | 3/8 |
| Voltage (v/ph/hz) | 220V 1PH 60HZ |
| Current (amps) | 5 |
| Motor type | DC |
| Air pressure (psi) | 80 |
| Air consumption (cfm) | 1 |
| Shipping weight (lbs) | 980 |
| Shipping dimensions (w/l/h, inch) | 60 x 48 x 55 |
Production
Machine Model
28 Feet per min.
Models & options
- 1312046Tension rack assembly 18″
- 1312029Border centering guide
- 1312052Adaptor for handle spool
- 1312160Border splitter, folder kit
- Stripe guides
- Hemmers
- Tape binders
- Extra rolls holders 11312K6 – Automatic Decorative Border Workstation Max Needle distance 6”, 2 roll holders, With Kansai BX1425 Sewing Head 11312K65R – Automatic Decorative Border Workstation, Max Needle distance 6”, 5 roll holders, With Kansai BX1425 Sewing Head
