Capabilities
Built for the production floor.
Every automatic decorative border workstation is engineered for uptime, serviceability, and integration with the rest of your line.
- Needle spacing: 65 needles, 1/4” gauge to 16” 10 needles/loopers standard
- Border width up to 21”
- Sew width up to 16” Auto
- Stop for material out or thread break
- Clean finish hem of border edges

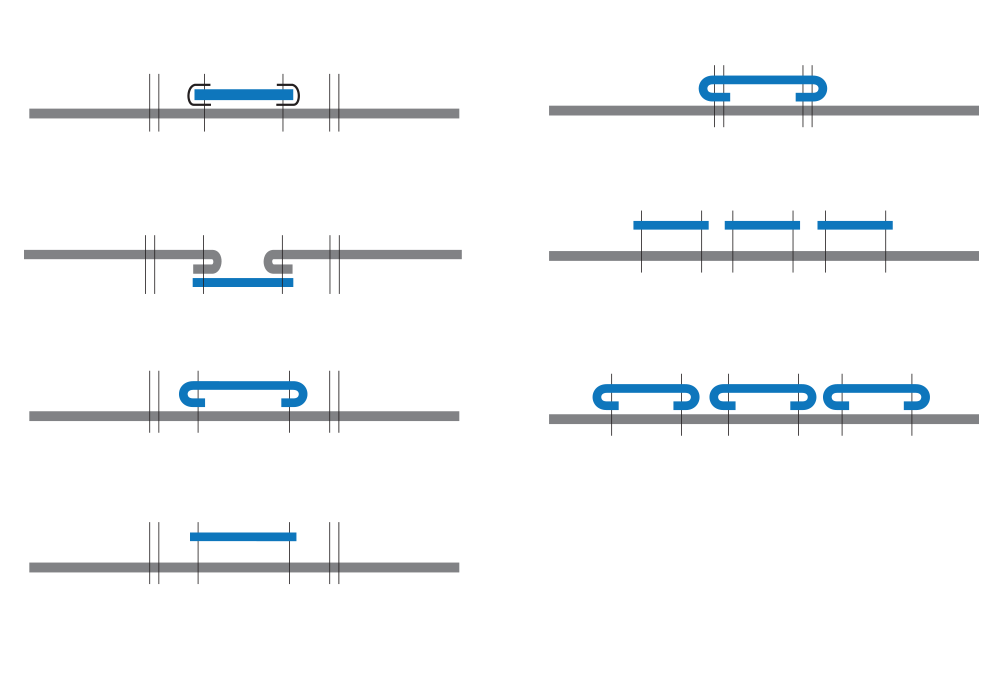

- Sews multiple hem, tape and decorative stitches
- Sews multiple split border applications in a single pass
- Variable torque re-winder
Specifications & details
| Max sewing speed (rpm) | 1200 |
|---|---|
| Factory preset speed (rpm) | 1100 |
| Max stitch length (spi) | 6 |
| Max needle distance (inch) | 16 |
| Needle system | SN328-22 |
| Needle size | 22/140 |
| Weight of material | MEDIUM |
| Max presser footlift (inch) | 3/8 |
| Voltage (v/ph/hz) | 220V 1PH 60HZ |
| Current (amps) | 5 |
| Motor type | AC |
| Air pressure (psi) | 80 |
| Air consumption (cfm) | 1 |
| Shipping weight (lbs) | 1100lbs / 500kg |
| Shipping dimensions (w/l/h, inch) | 96 x 68 x 65 |
Production
Machine Model
15 Feet per min.
Models & options
- Stripe guides
- Hemmers
- Tape binders
- 1312160Border splitter, folder kit
- Extra roll holders 11312N65
