Capabilities
Built for the production floor.

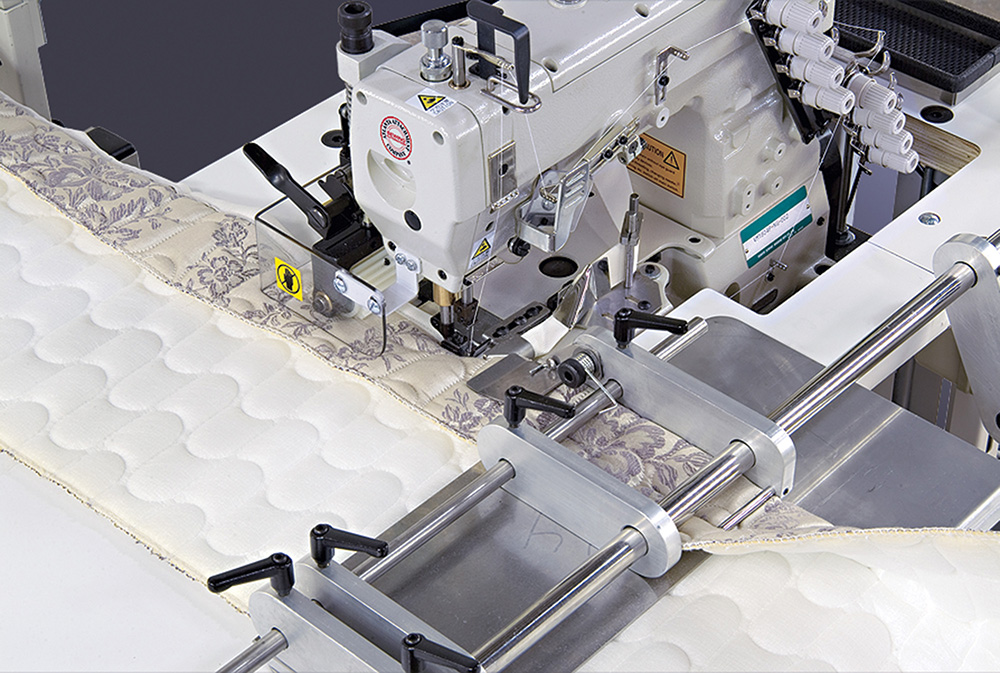

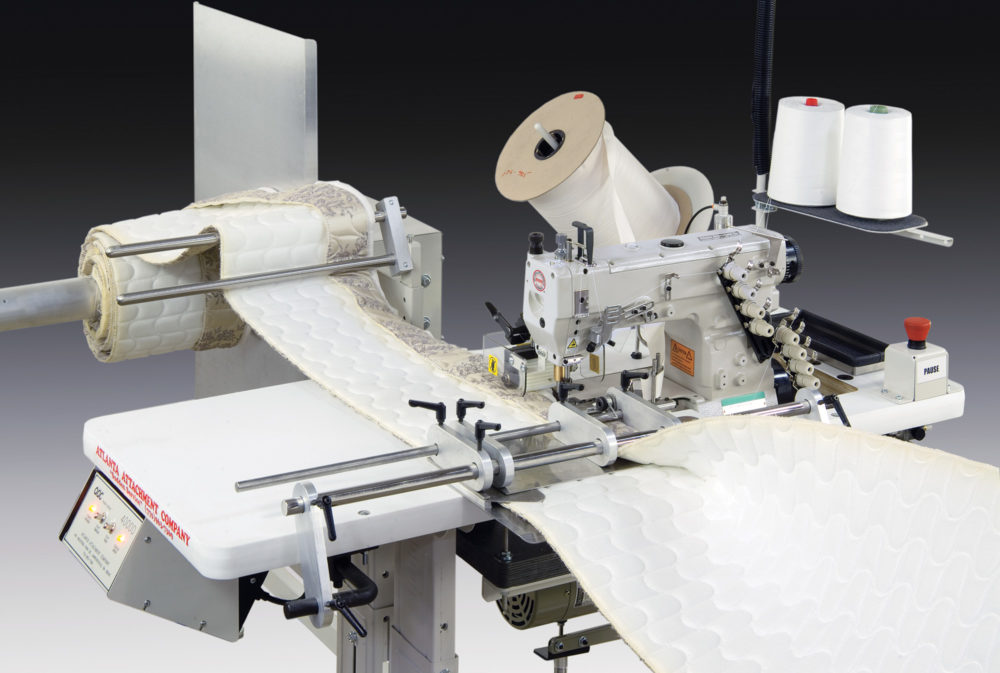

Every auto faux tape edge with or without binding is engineered for uptime, serviceability, and integration with the rest of your line.
- High-speed chain stitch sewing head
- Bind seam or self-tape look
- Faux seams pass the flammability test
- Adjustable folder with binder
- Auto stop for material depletion
- Reversible winder
- Close-coupled puller, synchronized to produce a pucker-free seam
- Sewing head with Automatic Lubrication
Specifications & details
| Max sewing speed (rpm) | 4500 |
|---|---|
| Factory preset speed (rpm) | 3450 |
| Max stitch length (spi) | 6/7 |
| Needle system | SN62X5721 |
| Needle size | 22/140 |
| Weight of material | LIGHT / MEDIUM |
| Voltage (v/ph/hz) | 220V 1PH 60HZ |
| Current (amps) | 10.1 |
| Motor type | CLUTCH |
| Air pressure (psi) | 80 |
| Air consumption (cfm) | 1 |
| Shipping weight (lbs) | 1050 |
| Shipping dimensions (w/l/h, inch) | 59 x 96 x 62 |
Production
40 Feet per minute
Models & options
- Kit for cording insert operations

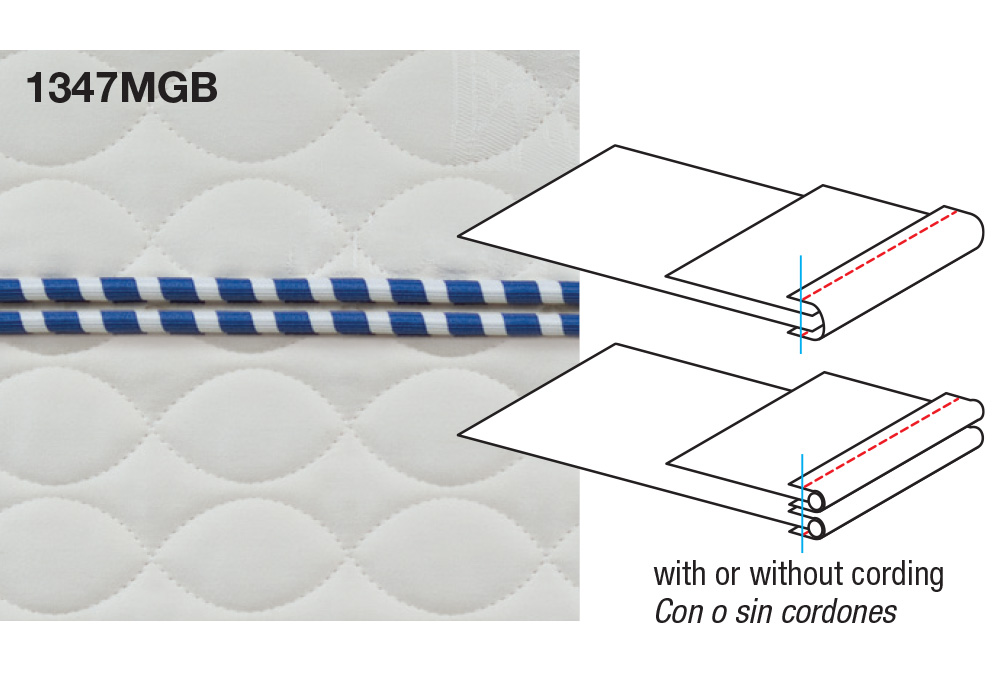

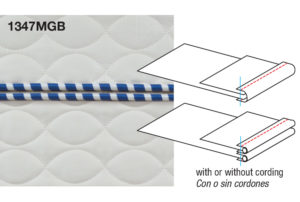

- 1347443Flanging assembly SEWING HEADS AVAILABLE G – Yamata 2002 S – Singer 300UX6 T – Typical GK321 K – Kansai DFB-14
