Capabilities
Built for the production floor.

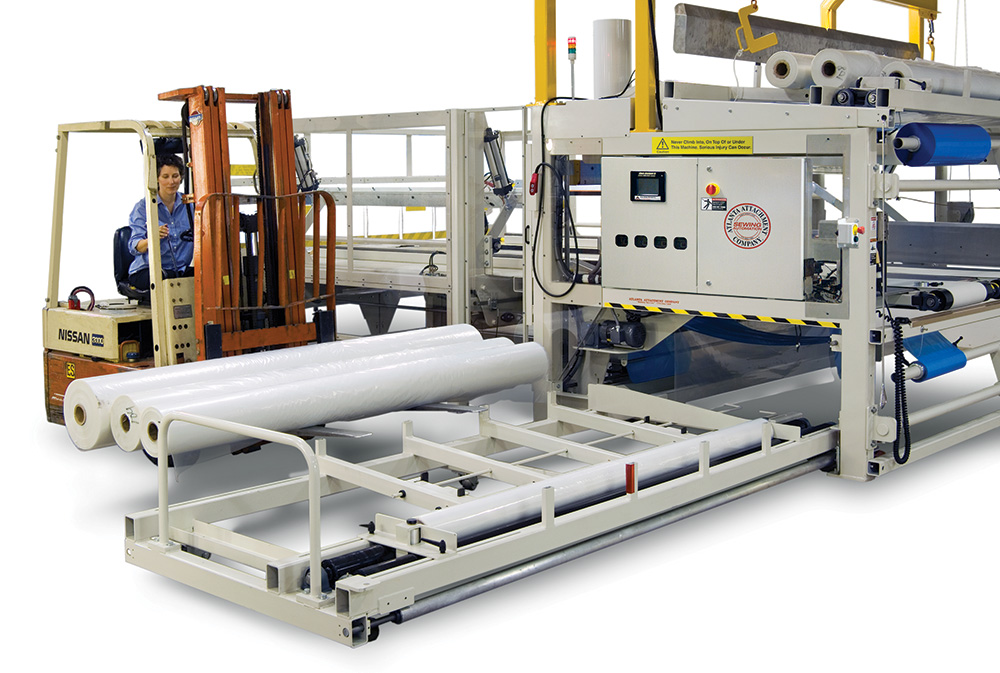

Every auto-pac™ automatic mattress packaging is engineered for uptime, serviceability, and integration with the rest of your line.
- Splice film with NO WASTE!
- Easy replacement of PTFE tape
- Upper and lower boot film holder
Specifications & details
| Max width of infeed (inch) | 85 |
|---|---|
| Min width of infeed (inch) | 72 |
| Max height under pressure roller (inch) | 21 Roll capacity, top & bottom 4 (12″ DIA) Infeed/outfeed conveyor height (inch) 36.5 Overall height 108 |
| Overall height with hoist option (inch) | 144 |
| Max film width (inch) | 120 Film width: |
| Top (inch) | 108 Film width: |
| Bottom (inch) | 100 |
| Boot roll dia (inch) | 10 NORMAL – 12 MAX |
| Voltage (v/ph/hz) | 240V 3PH 60HZ |
| Current (amps) | 30 |
| Air consumption (cfm) | 35 |
| Air pressure (psi) | 80 Machine |
| Weight (lbs) | 16,000 |
| Shipping weight (lbs) | 18,000 |
| Shipping dimensions (w/l/h, inch) | 2 @ 75 x 144 x 81 94 x 144 x 104 |
Production
3 Pieces Min. (no compression) 1-2 Pieces Min. (with compression) (*) Actual time may vary depending on the size and density of beds.
Models & options
- 1391106Multi-Roll Holder
- SAFE, rugged option for all AAC model 1390 Auto-Pac™ workstations
- Load with forklift, No lifting or climbing
- 16 roll capacity (up to 12″ diameter)
- Reduces downtime for Auto-Pac™ workstation
- Frees up storage space on manufacturing floor
- 1391277Full compression module
- 1391000Side compression module
- 1390563Hoist system
