Capabilities
Built for the production floor.

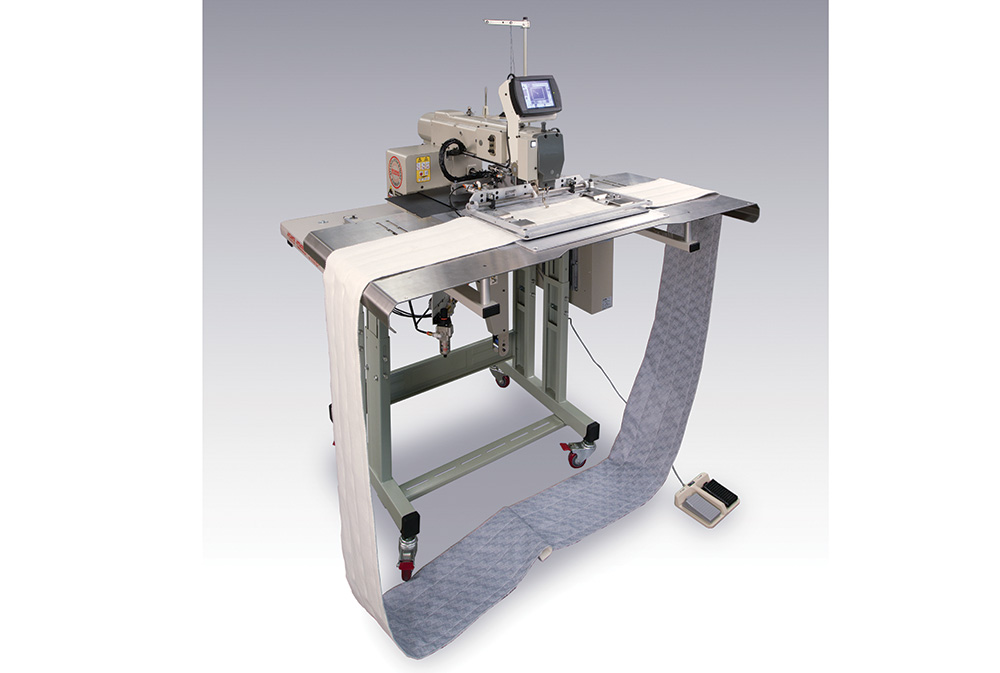

Every semi-automatic border label tacker is engineered for uptime, serviceability, and integration with the rest of your line.

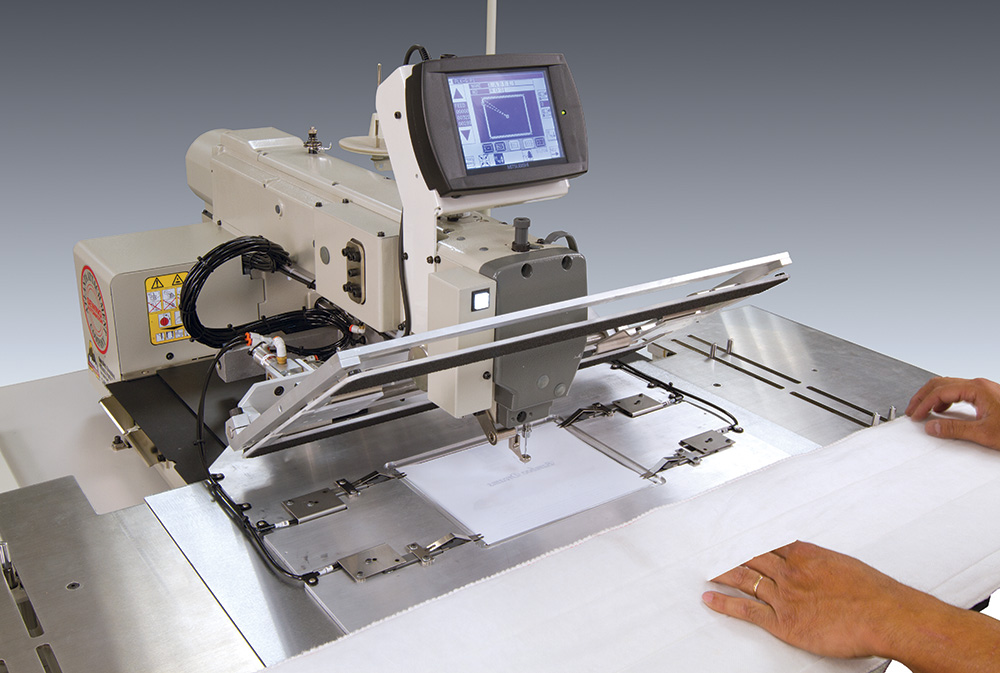

- Adjustable centering guides to align label in center of border.
- Guides can retract beneath the table or can be adjusted to align border off-center.
- Durable stainless steel top with rounded ends to easily position pre-closed border.
- Machine can be equipped with optional tooling to manually set/repair both vertical and horizontal handles.
- Depending on tooling, label can be positioned on top of the border and sewn in place; or below the border, as it is normally sewn on the panel.
- Foot pedal operation, optional touch switch operation available. 250mm X 160mm (9.8″ X 6.3″) Sew Field
Specifications & details
| Max sewing speed (rpm) | 2500 |
|---|---|
| Factory preset speed (rpm) | 1200 |
| Needle system | 135 x 17 |
| Needle size | 22 (140) |
| Weight of material | Medium/Heavy |
| Max presser foot lift (inch) | 19/32 |
| Sewing area (inch) | 9.8 x 6.3 11.8 x 7.9 |
| Voltage (v/ph/hz) | 220V 1Ph 60Hz |
| Current (amps) | 5 |
| Motor type | Servo |
| Air pressure (psi) | 80 |
| Air consumption (cfm) | 2 Shipping |
| Weight (lbs) | 1200 Shipping |
| Dimensions (w/l/h, Inch) | 72 x 64 x 69 |
Production
1453 1453A
60-90 Pieces per
Hour (depending on label size)
Models & options
- Model 1453 – Sew area – 9.8″ x 6.3″
- Model 1453A – Sew area – 11.8″ x 7.9″
- Hand switch activation
- Custom tooling
- Sew label on top or bottom of border
- Pattern recognition tooling
