Capabilities
Built for the production floor.
Every fabric shredder is engineered for uptime, serviceability, and integration with the rest of your line.
- •

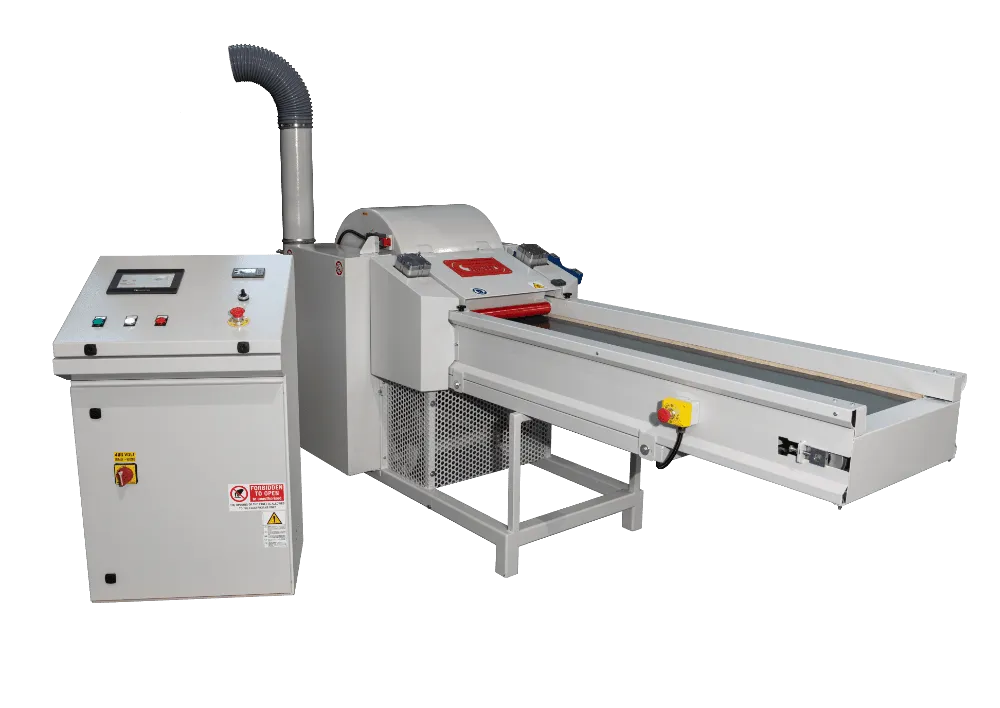

- This tearing machine is mainly used for recycling textile waste, but can also process other types of rejects.
- It can handle natural and synthetic fibers alike •
- The material is manually loaded on a belt conveyor equipped with a hand protection roller. •
- Toothed feed rollers hold the material in place so as to minimise the percentage of un-shredded fabric.
- The tearing is done by means of a rotating spiked metal cylinder with a working width of 500mm. • A sensor automatically reduces the feed roller speed in case of overload. • 7″ touchscreen interface for easy and immediate use of the machine. •
- Electrical system housed in IP66 standard cabinet equipped with disconnector switch, motor protections, inverters and low voltage controls.
- The machine casing is equipped with safety switches to prevent access to moving parts.
Specifications & details
| Length (cm) | / Longitud 120 |
|---|---|
| Width (cm) | / Ancho 330 |
| Height (cm) | / Altura 150 |
| Weight (kg) | / Peso 730 |
| Power (kW) | / Energia 11 Compressed |
| Air (bar) | / Aire Comprimido 2 |
| Production (kg/hr) | / Producción 120 |
